12V LED Trailer Light Wiring Kit Submersible Boat Trailer Lights Brake Turn Tail License Lights Under 80" Camper Truck RV DOT IP68 Waterproof
12V Boat Trailer Light Kit Waterproof
The 12V LED trailer lights are designed for Applications under 80 Inch width towing vehicle, like truck, trailer, boat, bus, Lorry, Van, caravan, snowmobile, etc
Please be careful not to use this product in sea water. Otherwise, please choose silicone wire to increase product lifespan.

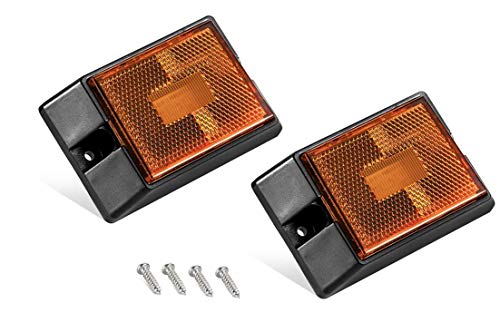

- 7-function: stop, turn, tail, rear clearance, rear reflex, side marker, and side reflex

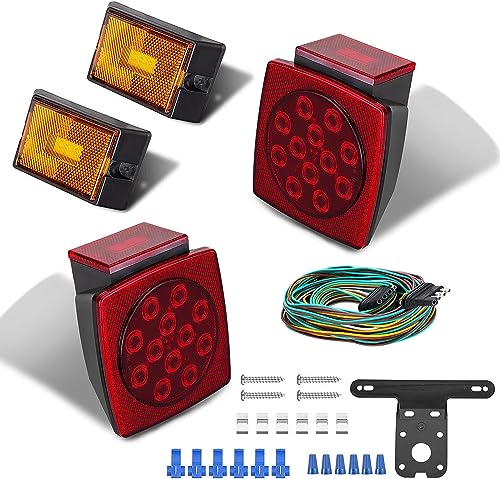

- Everything you need in the box
- The circuit board is sealed, IP68 waterproof
- Corrosion proof plastic housing, Compliant with DOT standards

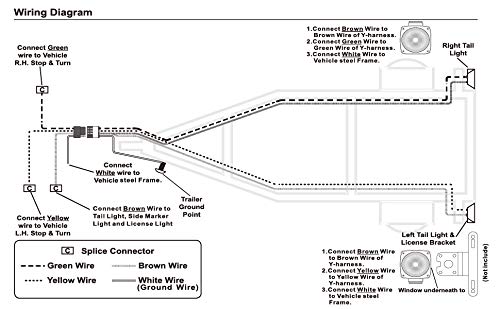

Tail light installation instructions

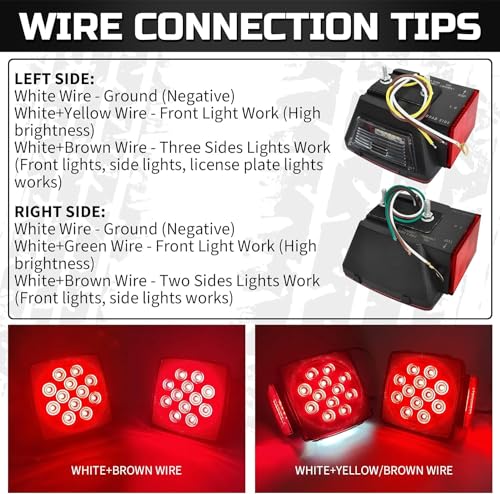

1.Connect the brown wire on the wire harness to the brown wire on the lights(Tail/Running Lights)
2.Connect the yellow wire on the wire harness to the yellow wire on the lights(Left StopTurn light)
3.Connect the green wire on the wire harness to the green wire on the lights(Right StopTurn light)
4.Attach the WHITE GROUND wire to the towing Trailer s frame
- 【High Visibility LED】- High Brightness LED Combination tail lights last longer than standard incandescent lights.And trailer light kit uses less energy than traditional standard incandescent lights. 625 lumens of light providing Super bright illumination,no glare, NOT incandescent Bulb!
- 【Completely Sealed and IP65 Waterproof】- Submersible Led Trailer Lights's lens and housing use Ultrasonic Welding Technology to achieve IP65 Waterproof, the inside of housing and LEDs , harness and PCB with enough waterproof glue to prevent water into.Complies with DOT standards.

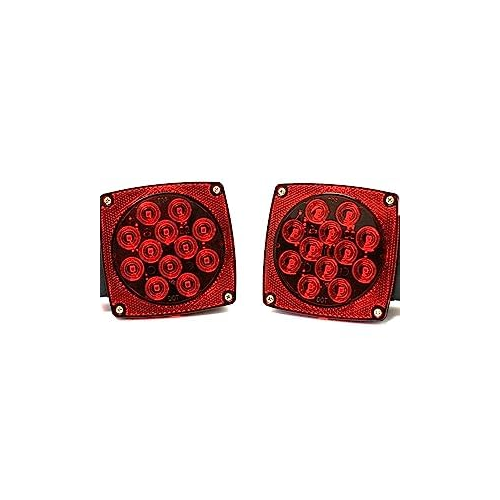

- 【High Power Clean Flux Led Trailer Tail Lights Kit】- Right Tail Light have 16LEDS SMD 5050 lamp beads : 12 rear facing large LEDs and 4 SMD LED-on Side Marker . Left Tail Light have 19LEDS : 12 rear facing large LEDs ,4 SMD LED-on Side Marker and 3 white LEDs facing down(For license Plate illumination)

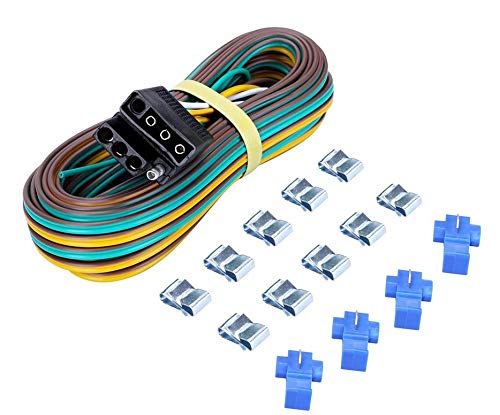

- 【Detailed Installation Instructions】 - With 22ft length wire harness that it is long enough to reach end of trailer, connect the BROWN wire to the towing vehicle's Tail light wire. Connect the YELLOW wire to the towing vehicle's Left Stop & Turn light . Connect the GREEN wire to the towing vehicle's Right Stop & Turn light . Attach the WHITE GROUND wire to the towing vehicle's frame.
- 【Wide Application + DOT Certification】- The 12V LED trailer lights are designed for Applications under 80 Inch width towing vehicle, like truck, trailer, boat, bus, Lorry, Van, caravan, snowmobile, etc. Our Lights are 100% compliant with DOT certified, this ensures that your lights are federally compliant.
