FEATURES

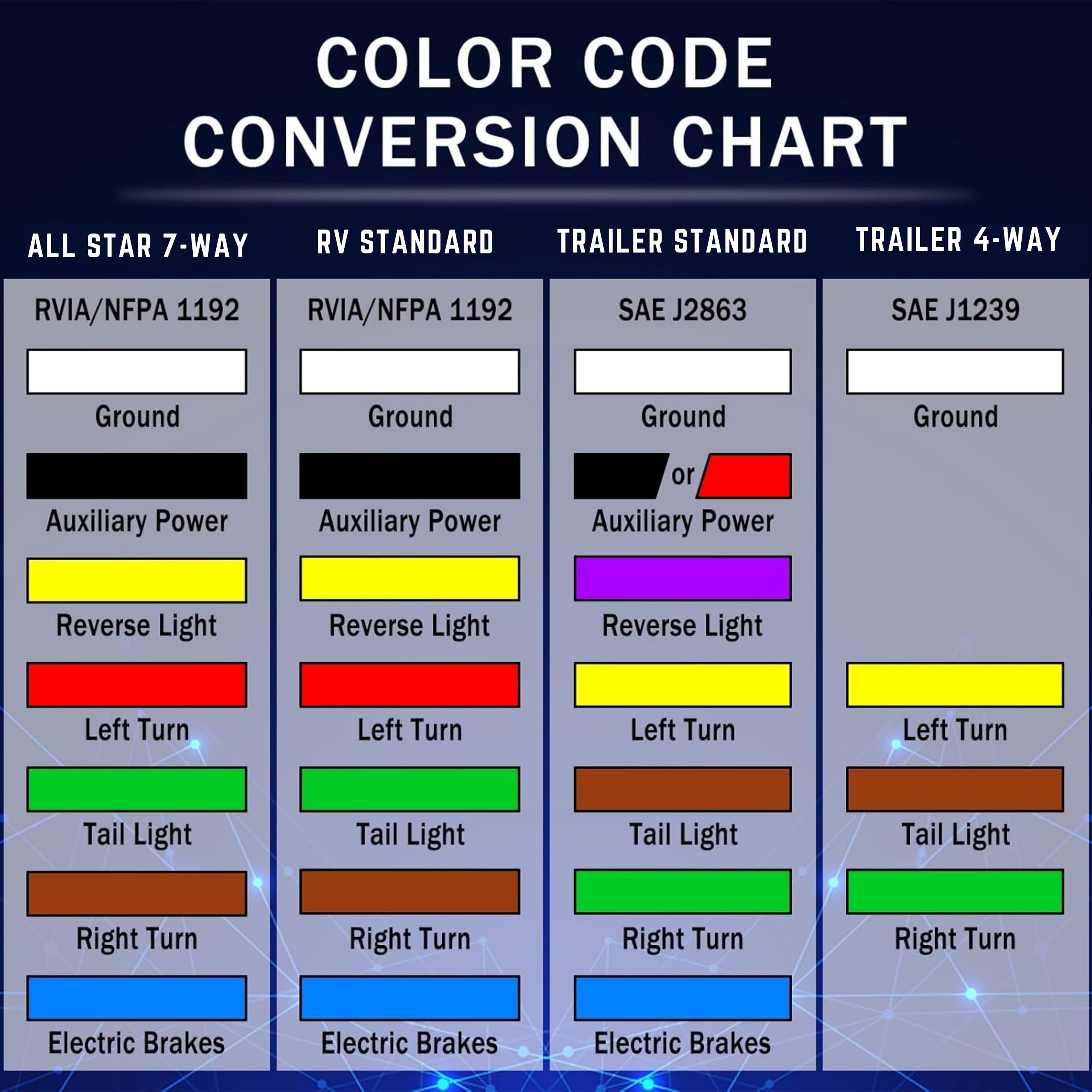

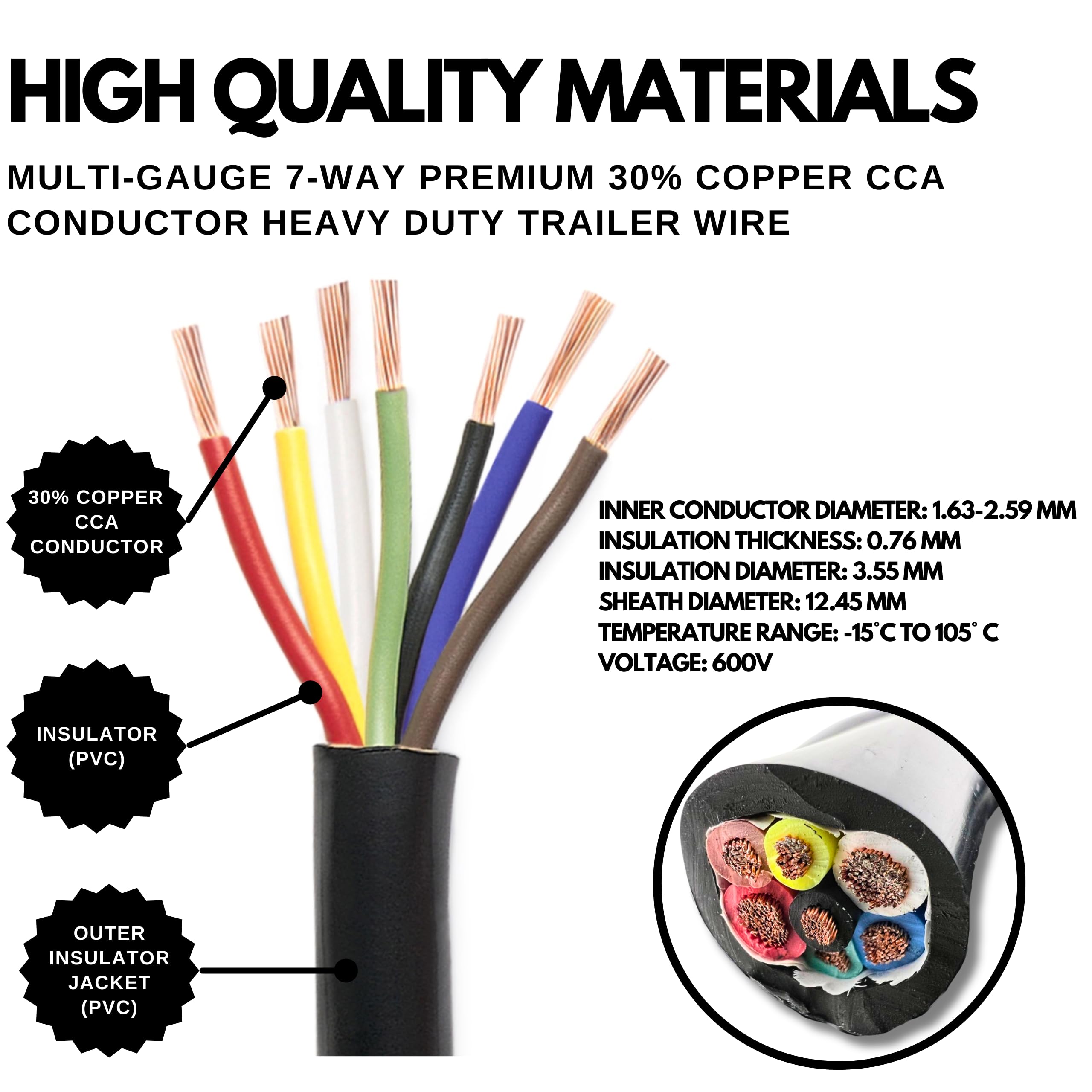

【Specific Wire Functions】: Each of the seven color-coded wires within the cable serves a specific function, including power supply, brake lights, turn signals, taillights, reverse lights, and auxiliary power. The wire gauges and colours are as follows: Black #14, White #10, Red #10, Green #14, Yellow #14, Blue #12, and Brown #14 (14/4, 12/1, 10/2 gauge, sheath diameter：0.4806 inch).
【Temperature Tolerance and Durability】: With a temperature range from -40°C to +105°C, this cable performs reliably in extreme conditions. This 100FT Heavy-Duty Cable is weatherproof, corrosion-resistant, and enclosed in a flexible PVC sheath, making it resistant to petrol, lubricating oils, and diluted acids.
【Conformance to Traditional SAE Standards】: The 7-conductor Trailer Cable meets RV Standard with stranded copper-clad aluminium (CCA) wire. It features 4 x 14 gauge wires, 2 x 10 gauge wires and 1x 10 gauge wire, each color-coded and enclosed in a durable black casing, ensuring reliable performance and easy installation.

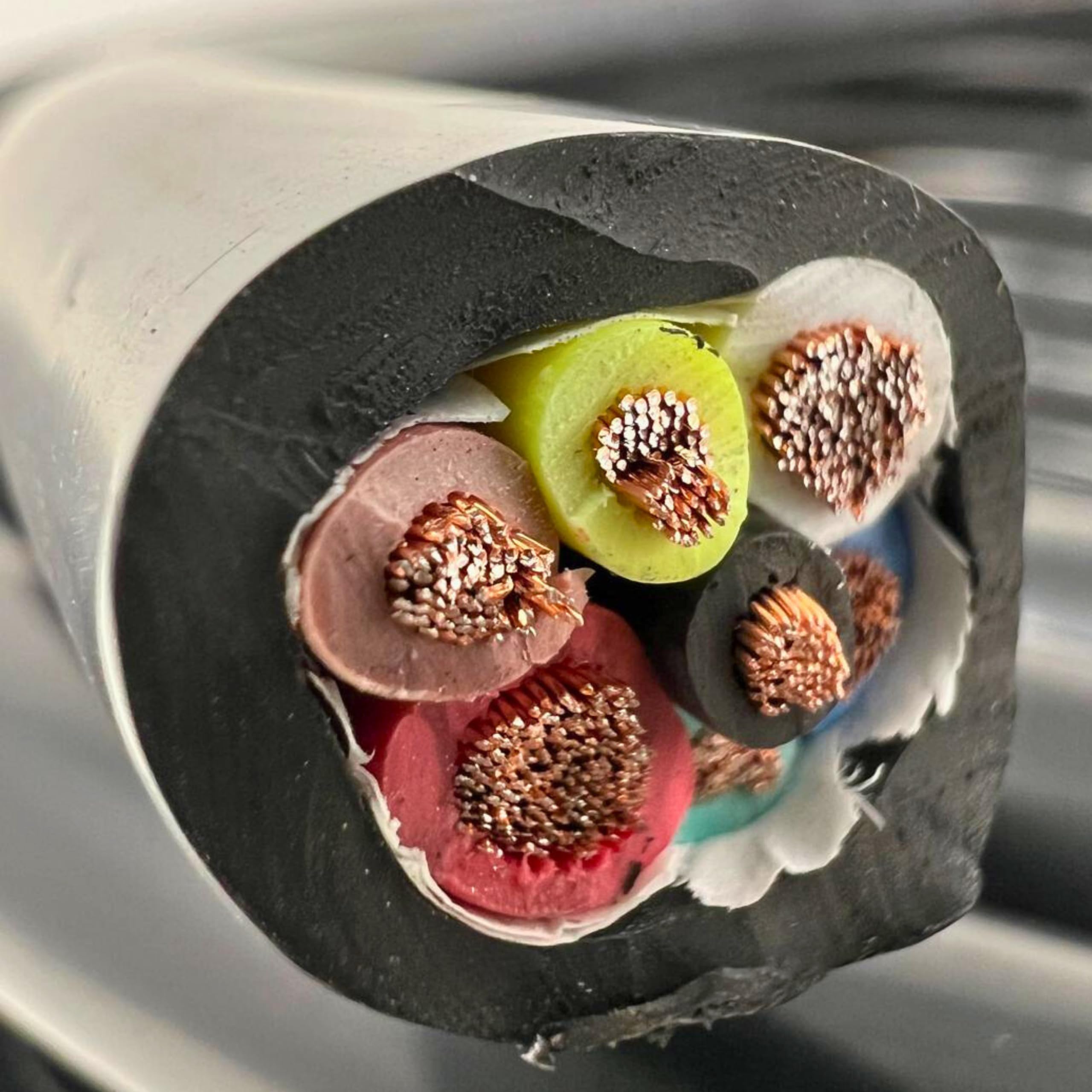

【Weatherproof and Corrosion-Resistant】: Built to withstand harsh weather conditions and resist corrosion, The Black Sheath Cable includes seven individually jacketed wires within a highly flexible outer jacket, providing added protection and flexibility during use. Our CCA cables feature 30% copper coating ensure superior connectivity and durability. Similar products only have 5-10% copper coating leading to low service life/connection issues.
【Ideal Application and Features】: This Heavy-Duty Cable is perfect for wiring LED lights and most trailer applications. Designed for RV trailers, food vans, caravans, and other towed vehicles, it features a 7-way replaceable core that is weatherproof and corrosion-resistant.
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Need help before or after you order? We’ve got you covered.📩Questions? Visit the Contact Us page for details on how to contact a customer service representative.
Free Shipping
30-Day Guarantee
DOT/SAE/FMVSS Certified
Premium Quality Truck Parts
DOT/SAE approved for road-legal use
5-conductor, color-coded wiring
14 AWG copper-clad aluminum conductors
Durable insulated outer jacketFEATURES
【Specific Wire Functions】: Each of the seven color-coded wires within the cable serves a specific function, including power supply, brake lights, turn signals, taillights, reverse lights, and auxiliary power. The wire gauges and colours are as follows: Black #14, White #10, Red #10, Green #14, Yellow #14, Blue #12, and Brown #14 (14/4, 12/1, 10/2 gauge, sheath diameter：0.4806 inch).
【Temperature Tolerance and Durability】: With a temperature range from -40°C to +105°C, this cable performs reliably in extreme conditions. This 100FT Heavy-Duty Cable is weatherproof, corrosion-resistant, and enclosed in a flexible PVC sheath, making it resistant to petrol, lubricating oils, and diluted acids.
【Conformance to Traditional SAE Standards】: The 7-conductor Trailer Cable meets RV Standard with stranded copper-clad aluminium (CCA) wire. It features 4 x 14 gauge wires, 2 x 10 gauge wires and 1x 10 gauge wire, each color-coded and enclosed in a durable black casing, ensuring reliable performance and easy installation.
【Weatherproof and Corrosion-Resistant】: Built to withstand harsh weather conditions and resist corrosion, The Black Sheath Cable includes seven individually jacketed wires within a highly flexible outer jacket, providing added protection and flexibility during use. Our CCA cables feature 30% copper coating ensure superior connectivity and durability. Similar products only have 5-10% copper coating leading to low service life/connection issues.
【Ideal Application and Features】: This Heavy-Duty Cable is perfect for wiring LED lights and most trailer applications. Designed for RV trailers, food vans, caravans, and other towed vehicles, it features a 7-way replaceable core that is weatherproof and corrosion-resistant.
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Need help before or after you order? We’ve got you covered.📩Questions? Visit the Contact Us page for details on how to contact a customer service representative.
Durability You Can Depend On. Mile After Mile
Flexible in the cold. Tough in the heat. Tested to outperform cheap imports.
All Star Trailer Cable
For high performance
Cold-weather flexibility down to -40°C
Prevents cracking and kinks in harsh winter conditions
Sealed outer jacket resists UV, salt, and abrasion
Built to withstand road salt, sun exposure, and rough handling
Color-coded for error-free installs
Saves time in the shop — no guessing, no mistakes
Built for commercial-grade use and long hauls
Trusted by fleet managers and owner-operators nationwide
FMVSS 108 Compliant
Waterproof Tested
Professional-Grade
Free Shipping
30-Day Guarantee
DOT/SAE/FMVSS Certified
Premium Quality Truck Parts
Free Shipping
30-Day Guarantee
DOT/SAE/FMVSS Certified
Premium Quality Truck Parts
Free Shipping
30-Day Guarantee
DOT/SAE/FMVSS Certified
Premium Quality Truck Parts
Trusted by 100,000+ Drivers Nationwide
Real trucks. Real results. See how pros stay compliant with All Star parts.
"Passed inspection with no issues."
Been using these lights for 6 months now. Bright, durable, and passed DOT inspection first time. Exactly what I needed.
"Still bright after two winters."
Quality is outstanding. These lights have survived two brutal winters and still shine like new. Worth every penny.
"Good quality and fast shipping."
Ordered on Monday, arrived Wednesday. Good quality parts at a fair price. Will definitely order again.
"Good quality and fast shipping."
Ordered on Monday, arrived Wednesday. Good quality parts at a fair price. Will definitely order again.
Why Drivers Choose All Star Over Others
See how we stack up against generic imports and OEM brands.
|
Feature / Proof Point |
 All Star Truck Parts |
Generic Imports |
OEM Replacement |
|---|---|---|---|
| Compliance Proof |
DOT/SAE/FMVSS Certified
|
Often Unverified
|
Certified
|
| Durability |
Heavy-Duty Waterproof & UV-Tested
|
Weak Adhesives / Fading LEDs
|
High Quality but Expensive
|
| Warranty |
30-Day Guarantee + U.S. Support
|
None / Overseas Seller
|
Limited 1-Year
|
| Shipping Speed |
Fast, Free U.S. Shipping
|
Slow (2–4 Weeks)
|
Variable / Dealer Only
|
| Customer Support |
Real Experts in Texas
|
Automated Chat Only
|
Dealer Service Line
|
frequently asked questions
HOW DOES THIS WIRING COMPARE TO OEM OR GENERIC CABLES?
This wiring uses thicker-gauge copper and tougher outer jackets than many generic cables, helping deliver more reliable power and better resistance to wear, vibration, and weather over time.
WILL THIS WIRING HOLD UP IN COLD WEATHER AND HARSH CONDITIONS?
Yes. The insulation is designed to remain flexible in cold temperatures and resist cracking, making it suitable for year-round use in heat, rain, snow, and road spray.
IS THIS WIRING COMPATIBLE WITH STANDARD 12V SYSTEMS?
Yes. This wiring is intended for standard 12V truck and trailer electrical systems. Always verify connector type and wire gauge requirements for your specific application.
DO YOU SELL CONNECTORS, GROMMETS, OR TOOLS I NEED TO COMPLETE INSTALLATION?
Yes. We carry a full selection of connectors, grommets, plugs, and installation accessories designed to work with our wiring. This makes it easy to get everything you need in one order and complete the install correctly the first time.
WHAT’S THE DIFFERENCE BETWEEN COPPER-CLAD ALUMINUM AND PURE COPPER WIRING?
Pure copper wiring provides better conductivity, lower resistance, and more consistent power over long runs. It also handles heat and load better over time. Copper-clad aluminum can be lighter and cheaper, but pure copper is preferred for durability, reliability, and long-term performance in truck and trailer applications.
